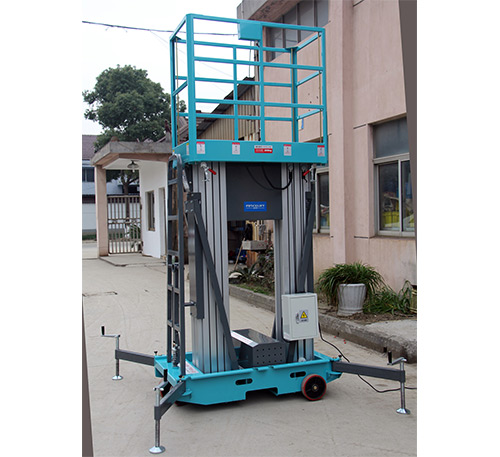

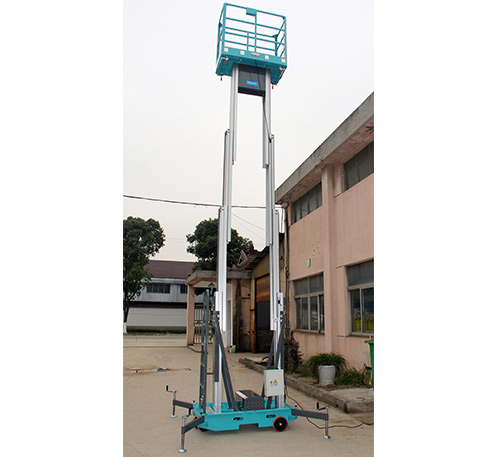

雙桅式鋁合金升降機Double Mast aluminum aerial Work Platform

      型號 Moder   GTWY6-200S

安全載荷/Pated Load ...................................................200kg

工作高度/Working Height ....................................................8m

平臺高度/Platform Height ...................................................6m

 整機長度/Overall length..............................................................1.38m

整機寬度/Overall width...............................................................0.85m

整機高度/Overdll height...............................................................1.98m

工作平臺尺寸/Platform size.................................................1.18*0.62m

離地間隙/Ground clearance.......................................................0.08m

軸距/Wheel bas.....................................................................................1.24m

支撐面積Maximum support area..........................................................2*1.8m

 起升電機/Lifting power  AC...................................................................220VAC/1.1kw

                    DC...................................................................24VDC/0.8kw

 蓄電池/Battery.................................24v/80Ah

充電器/Charger.................................24v/50A

上升速度/Lifting speed ................................69sec

下降速度/Descending speed ............................可調

輪胎/Tyre 后胎/Rear tyre.................................φ150*50mm

          前胎/Front tyre................................φ150*50mm

 整機重量/Weight  GTWY6-200S...............380kg

標準配置 /  Standard configuration

-調平支腿 / Chassis wiht level gauge         -緊急停止按鈕/Emerhgency stop button

-雙控制器操作/Dual activated up/down switch  -緊急下降拉鈕/Emerhgency Descending button

-水平指示器/Level gauge                   -超載限制/Over load protection
