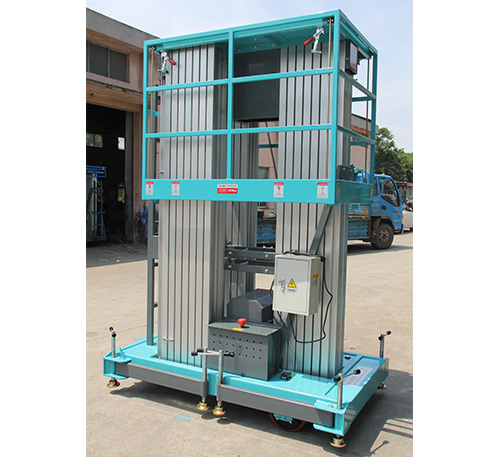

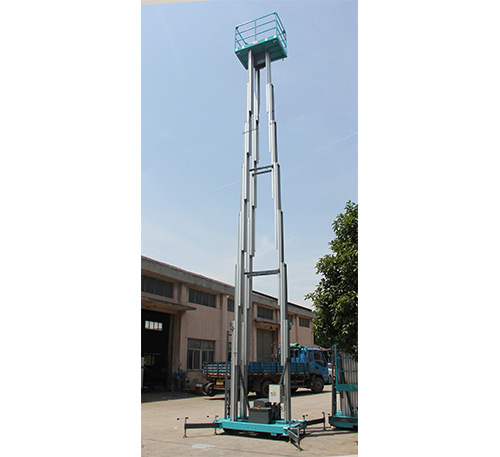

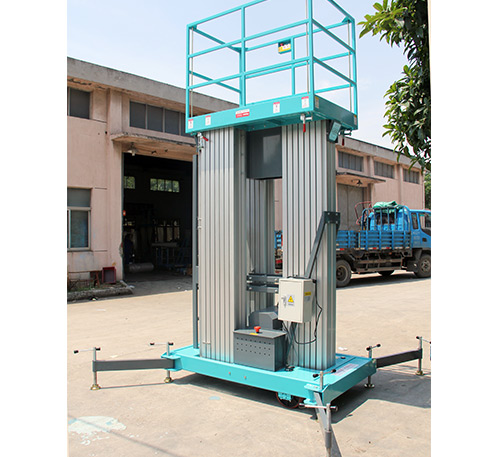

三桅式鋁合金升降機Triple Mast aluminum aerial Work Platform

            型號 Moder   GTWY12-300S

安全載荷/Pated Load ...................................................250kg

工作高度/Working Height ....................................................14m

平臺高度/Platform Height ..................................................12m

 整機長度/Overall length..............................................................1.9m

整機寬度/Overall width...............................................................1.10m

整機高度/Overdll height...............................................................2.52m可選擇高度2.32m

工作平臺尺寸/Platform size.................................................1.4*0.88m

離地間隙/Ground clearance.......................................................0.1m

軸距/Wheel bas.....................................................................................1.25m

支撐面積Maximum support area..........................................................2.70*2.20m

起升電機/Lifting power AC...................................................................220VAC/1.5kw

                     DC...................................................................24VDC/2.2kw

 蓄電池/Battery.................................24v/120Ah

充電器/Charger.................................24v/50A

上升速度/Lifting speed ................................115sec

下降速度/Descending speed ............................可調

輪胎/Tyre 后胎/Rear tyre.................................φ200*50mm

         前胎/Front tyre................................φ200*50mm

 整機重量/Weight  GTWY12-300S...............950kg

標準配置 /  Standard configuration

-調平支腿 / Chassis wiht level gauge          -緊急停止按鈕/Emerhgency stop button

-雙控制器操作/Dual activated up/down switch -緊急下降拉鈕/Emerhgency Descending button

-水平指示器/Level gauge                   -超載限制/Over load protection
